com.yworks.yfiles.bpmn.view

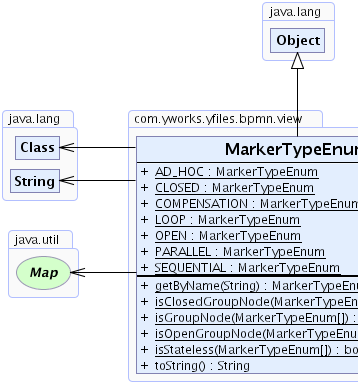

Class MarkerTypeEnum

java.lang.Object
  com.yworks.yfiles.bpmn.view.MarkerTypeEnum

public class MarkerTypeEnum

extends Object

Type-safe enumeration for BPMN markers.

Field Summary

static MarkerTypeEnum	AD_HOC Type constant for an ad-hoc marker.
static MarkerTypeEnum	CLOSED Type constant for a closed sub-process marker.
static MarkerTypeEnum	COMPENSATION Type constant for a compensation marker.
static MarkerTypeEnum	LOOP Type constant for a loop marker.
static MarkerTypeEnum	OPEN Type constant for an open sub-process marker.
static MarkerTypeEnum	PARALLEL Type constant for a parallel marker.
static MarkerTypeEnum	SEQUENTIAL Type constant for a sequential marker.

Method Summary

static MarkerTypeEnum	getByName(String name) Retrieves the marker type constant that corresponds to the given marker name.
static boolean	isClosedGroupNode(MarkerTypeEnum[] markers) Returns whether or not the given markers indicate that their node is a closed group.
static boolean	isGroupNode(MarkerTypeEnum[] markers) Returns whether or not the given markers indicate that their node is a BPMN group node.
static boolean	isOpenGroupNode(MarkerTypeEnum[] markers) Returns whether or not the given markers indicate that their node is an open group.
static boolean	isStateless(MarkerTypeEnum[] markers) Returns whether or not the given markers indicate that their node is a BPMN stateless task.
String	toString() Returns a string representation of this marker.

Methods inherited from class java.lang.Object

clone, equals, finalize, getClass, hashCode, notify, notifyAll, wait, wait, wait

Field Detail

AD_HOC

public static final MarkerTypeEnum AD_HOC

Type constant for an ad-hoc marker.

LOOP

public static final MarkerTypeEnum LOOP

Type constant for a loop marker.

PARALLEL

public static final MarkerTypeEnum PARALLEL

Type constant for a parallel marker.

SEQUENTIAL

public static final MarkerTypeEnum SEQUENTIAL

Type constant for a sequential marker.

COMPENSATION

public static final MarkerTypeEnum COMPENSATION

Type constant for a compensation marker.

CLOSED

public static final MarkerTypeEnum CLOSED

Type constant for a closed sub-process marker.

OPEN

public static final MarkerTypeEnum OPEN

Type constant for an open sub-process marker.

Method Detail

toString

public String toString()

Returns a string representation of this marker.

Returns:

a string representation of this marker.

getByName

public static MarkerTypeEnum getByName(String name)

Retrieves the marker type constant that corresponds to the given marker name.

Parameters:

name - the name of the type constant to retrieve. Should be one of

• BPMN_MARKER_AD_HOC
• BPMN_MARKER_LOOP
• BPMN_MARKER_PARALLEL
• BPMN_MARKER_SEQUENTIAL
• BPMN_MARKER_COMPENSATION
• BPMN_MARKER_CLOSED
• BPMN_MARKER_OPEN

Returns:

the marker type constant for the given name or null if there is no corresponding type constant.

isGroupNode

public static boolean isGroupNode(MarkerTypeEnum[] markers)

Returns whether or not the given markers indicate that their node is a BPMN group node.

Parameters:

markers - the markers to check.

Returns:

true if the given markers indicate that their node is a BPMN group node; false otherwise.

isClosedGroupNode

public static boolean isClosedGroupNode(MarkerTypeEnum[] markers)

Returns whether or not the given markers indicate that their node is a closed group.

Parameters:

markers - the markers to check.

Returns:

true if the given markers indicate that their node is a closed group; false otherwise.

isOpenGroupNode

public static boolean isOpenGroupNode(MarkerTypeEnum[] markers)

Returns whether or not the given markers indicate that their node is an open group.

Parameters:

markers - the markers to check.

Returns:

true if the given markers indicate that their node is a open group; false otherwise.

isStateless

public static boolean isStateless(MarkerTypeEnum[] markers)

Returns whether or not the given markers indicate that their node is a BPMN stateless task.

Parameters:

markers - the activity markers to check.

Returns:

true if the given markers indicate that their node is a BPMN stateless task; false otherwise.
